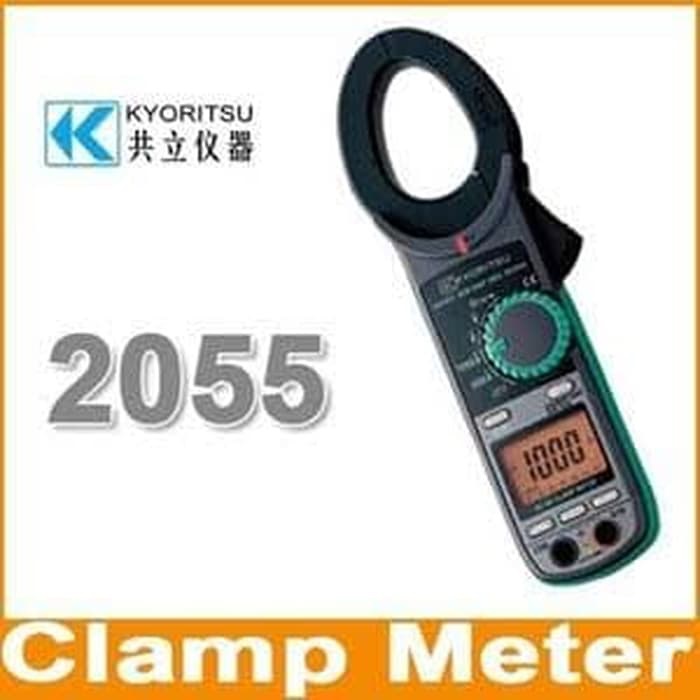

AC DC Clamp Meter Kyoritsu KEW-2055
Brand: Kyoritsu Japan
Type: KEW2055
Ac / dc 1000 ampere
Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
Very useful for power distribution companies, power utilities and maintenance fields.
Specs:
* AC A: 0 - 600.0/1000A
- 1.5%rdg5dgt (50/60Hz)
- 3.0%rdg5dgt (40 - 400Hz)
* DC A: 0 - 600.0/1000A 1.5%rdg5dgt
* AC V: 6/60/600V Auto Ranging
- 1.3%rdg4dgt (50/60Hz)
- 3.0%rdg5dgt (40 - 400Hz)
* DC V: 600m/6/60/600V Auto Ranging 1.0%rdg3dgt
* Ohm: 600/6k/60k/600k/6M/60M (Auto Ranging)
1%rdg5dgt (600 - 6M) / 5%rdg8dgt (60M)
* Continuity buzzer: Buzzer Sounds at 100
* Frequency/DUTY: 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%
* Conductor size: '40mm
* Safety Standard: IEC 61010-1 CAT IV 600V,
- IEC 61010-031,
- IEC 61010-2-032,
- IEC 61326
* Power source: R03 (1.5V) (AAA) 2
* Dimensions: 254(L) 82(W) 36(D)mm
* Weight: 310g
* Included Accessories
- 7066A (Test leads)
- 9094 (Carrying case)
- Instruction Manual
